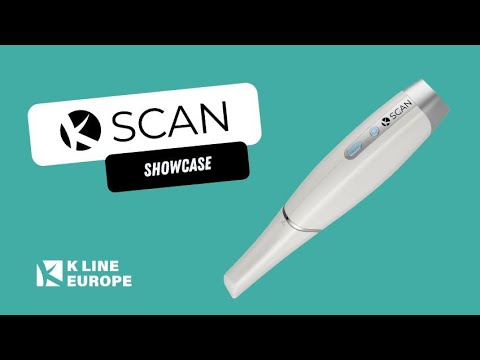

The K Scan comes complete with an intra oral scanner and a software for your notebook / computer.
Design
Lightweight and portable design, easy to install, easy to use
Software
Installed in a Notebook (supported by Nvidia Graphic cards and Windows system)
Product specifications
1. Small size and lightweight- Scanner size: 240mm (length) × 39.8mm (width) × 57mm (height) – Scanning head size: 18.5mm (height) × 19mm (width)
– Weight: 350g
– Applicable to patients with different opening degrees. Scan head detachable to support multi-mode disinfection. Scanning head can be autoclaved and immersed to avoid cross infection
3. No powder scanning
– Reduces the difficulty and complexity of clinical operations – Improves patient comfort
4. Color scanning
– True color imaging reflects the actual situation of the patient’s mouth
– Easy to distinguish between soft and hard tissue
– Facilitates easy communication between doctors and patients
5. High scanning accuracy and speed
– Scanning with up to 25μm – for all clinical needs – Saving time compared to traditional impressions – Full port scanning time: ≤ 5 minutes
6. Continuous scanning
– Reduces clinical operation time and increase efficiency
– Real-time display of scanned images, so doctors can diagnose and analyze live
7. Accurate depth of field
– Large depth of field of 15mm to ensure completeness of images
8. Built-in anti-fog function
– The anti-fog function is built in the scanning head, and the lens is automatically heated to prevent fogging in the mouth.
– Provides guarantees for the completeness of data collected at one time
9. Pen Design
– Pen-holding design
– Streamlined design for a more comfortable grip – Ergonomic design10. Data format is open – Unencrypted STL format
– Compatible with most CAD design software
– Data can be transferred to the machining center via the built-in cloud service or by alternative means
